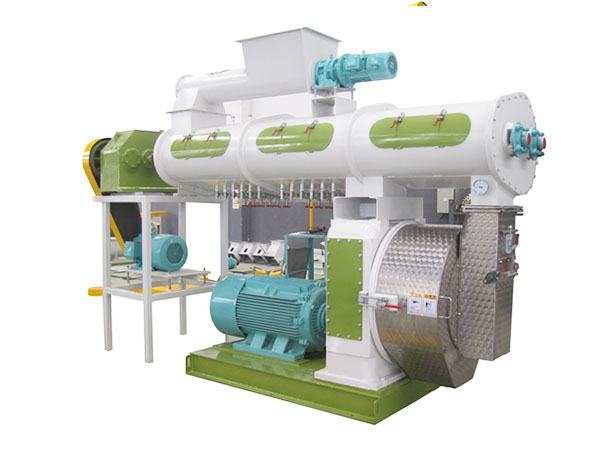

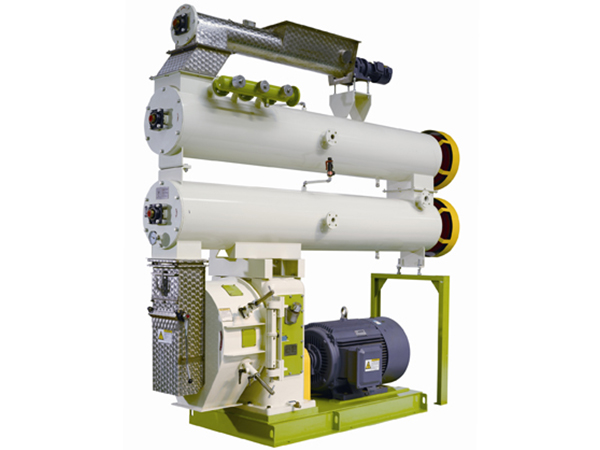

This series product is suitable for shrimp feed, fish feed Feed production sinking.
1. centralized control system valve, steam add reliable, easy to operate;
2. The main transmission and repression perfect room upgrade, increase yields, better quality particles;
3. its feed use circular cylinder and feeding frequency feeder, the feeder then added anti-caking barrel arch and ensure uniform feeding;
4. Used 3-layer jacket tempered conditioner or biaxial differential conditioner, blade installation in the form of a specially designed, speed quenched shaft and the steam vapor 5. Add the system, ensure that the material can be fully quenched aging;
6. The cutter mechanism is fixed to the cabinet, open the door without leaving the knife, the blade material selection, high speed tool steel or special alloy welding tip, 7 blade thickness of 2-3 mm, the blade close to the Ring-mold surface, the blade can be realized Quick-change;
8. Design shrimp feed dedicated pressure roller and the pressure roller surface form; improving existing feed blade so that the material of average to each pressing area, materials distribution;
9. Ring-mold design speed according to the characteristics of shrimp feed, greatly improve the appearance and quality of production capacity Granulator particles and the intrinsic quality;
10. The chute design conform smooth flow of materials, and the addition of external pneumatic machine irresolute material; Granulator automatic control system design and overload protection design;
11. The fish feed pellet machine is suitable for producing Feed carp, grass carp, black carp, silver carp and other common freshwater fish;
12. Fish feed particle machine uses a unique double-jacketed conditioner, heat tempered better.
Project
|
|
Operating Specifications
|
|
|
|
|
|
Model
|
|
SZLH250
|
SZLH320
|
SZLH350
|
SZLH420
|
SZLH508
|
SZLH600
|
Yield (t / h)
|
Livestock
|
0.5 to 1.5
|
3-5
|
4-8
|
8 to 12
|
12 to 15
|
15 to 20
|
Aquatic product
|
0.5 to 1
|
1.5-2
|
2-4
|
3-8
|
4 to 10
|
6 to 15
|
Power (kW)
|
|
15
|
37
|
55
|
90/110
|
132
|
185/200
|
Feeder (kW)
|
|
0.55
|
0.75
|
0.75
|
15
|
15
|
3
|
Modulator (kW)
|
|
15
|
22
|
22
|
5.5
|
7.5
|
7.5
|
Particle size (mm)
|
Livestock
|
φ2-φ10
|
φ2-φ10
|
φ2-φ10
|
φ2-φ10
|
φ2-φ10
|
φ2-φ10
|
Aquatic product
|
φ1-φ5
|
φ1-φ5
|
φ1-φ5
|
φ1-φ5
|
φ1-φ5
|
φ1-φ5
|
Steam demand (t / h)
|
|
0.2
|
0.3
|
0.4
|
0.5
|
0.6
|
1
|
|
