It applies to food, Feed industry in stand-alone or centralized dust removal and pneumatic conveying and dust recycling processing and filtering integration.
1. The device has low resistance, high dust removal efficiency, easy operation, simple maintenance, supporting air pressure and low noise, long life, small size, shape and other characteristics.
2. Using a special air bag directly connected with the solenoid valve, reducing damage to the solenoid valve diaphragm, stable and reliable.
3. The bag according to user needs to have ultra-fine, temperature, humidity, static and other options.
4. The series square Pulse dust collector (TBLMF) is mainly used for doghouse and dust less place to have a negative pressure requirements.

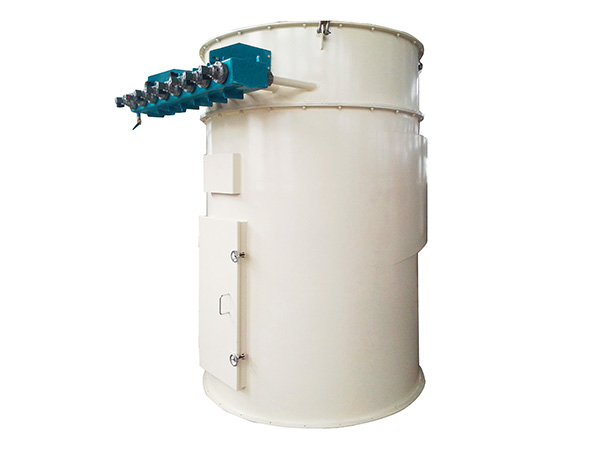

5. The series high pressure cylinder Pulse dust collector (TBLMY) with large centrifugal tangential inlet, a cylindrical casing, cutting long cone hopper with a cylindrical bag 6. Preparation and unique pulsed blowing spray device having resistance of the device is small, light bag load, process air volume, high dust removal efficiency, compact structure
Model
|
TBLMY9
|
TBLMY18
|
TBLMY26
|
TBLMY39
|
TBLMY52
|
TBLMY78
|
TBLMY104
|
Filter area (m²)
|
3.7 / 5.5 / 7.4
|
7.4 / 11 / 14.8
|
10.7 / 15.9 / 21.3
|
16 / 23.8 / 32
|
21.3 / 31.8 / 42.7
|
32 / 47.6 / 64
|
42.7 / 63.5 / 85.3
|
Air volume (m³ / h)
|
400-1998
|
790-3960
|
1145-5730
|
1720-8610
|
2290-11460
|
3440-17180
|
4590-22950
|
Model
|
TBLMF4
|
TBLMF6
|
TBLMF9
|
TBLMF12
|
TBLMF15
|
TBLMF18
|
|
Filter area (m²)
|
1.6 / 2.5 / 3.3
|
2.5 / 3.7 / 5
|
3.7 / 5.5 / 7.4
|
5 / 7.3 / 9.9
|
6.2 / 9.2 / 12.3
|
7.4 / 11 / 14.8
|
|
Air volume (m³ / h)
|
800-1200
|
1200-1500
|
1900-2400
|
2200-3000
|
2500-3600
|
3150-4500
|
|
Model
|
TBLMF21
|
TBLMF24
|
TBLMF28
|
TBLMF36
|
TBLMF48
|
TBLMF56
|
|
Filter area (m²)
|
8.6 / 12.8 / 17.2
|
9.9 / 14.7 / 19.7
|
11.5 / 17.1 / 23
|
14.8 / 22 / 29.6
|
19.7 / 29.3 / 39.4
|
23 / 34.2 / 46
|
|
Air volume (m³ / h)
|
3600-5500
|
4220-6000
|
4500-7500
|
5800-8400
|
6400-10800
|
8400-12000
|
|
* Note: The air volume and filtration area data for reference only, actual configuration, according to the needs of different optional filter bag number and length of
|
|
