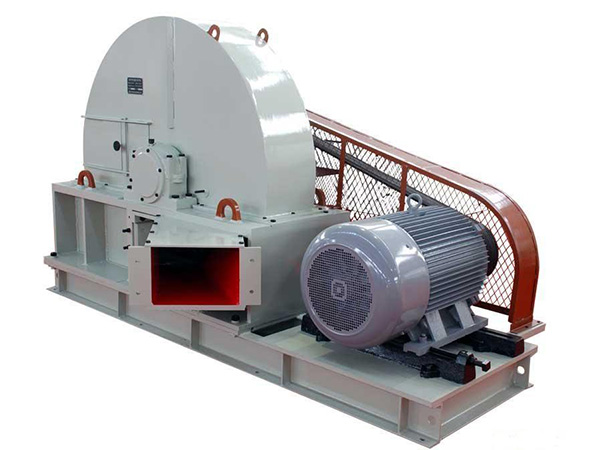

BX Disc type chipper









        Scope: timber, wood trails, branches, plates and so on.

Disc type Chipping machine is the preparation of high-quality wood and special equipment, which applies to all paper mills, particle board plant, fiber plants and wood chip production base. You can log, cutting the growth of the small-diameter wood and other uniform, cut my credentials, a uniform thickness of high quality industrial wood, while also cutting branches, plates and so on.

The Slicing machine from the rack, cutter, feed, part of the casing, electronic control systems.

To meet the paper, fiberboard, particleboard industry demand for different lengths of wood chips, wood chips length can be adjusted within a certain range.

It is compact, simple operation, outstanding production capacity, wood chips pass rate, low energy consumption, it is the ideal equipment of domestic and foreign production and export of wood chips.

Model
Cutter diameter (mm)
Cutter speed (rpm)
Blade number (the)
Chip length (mm)
Feeding way
Feeding mouth size (mm)
Yield (m³ / h)
Main motor power (kw)
Wood maximum diameter (mm)
Weight (kg)
Full size (LxWxH mm)
BX116A
630
800
3
15-25
Horizontal
130 * 150
twenty three
22
100
827
2340 * 1200 * 1845
BX1710
950
980
6
12-35
Incline
207 * 190
5.5-8
55
100
2665
2550 * 1600 * 1650
